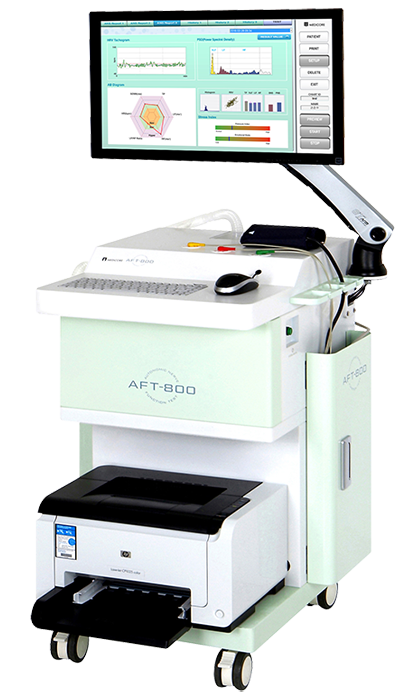

AFT-800

Complete package of Autonomic Nervous System Function & Orthostatic Test

Early detection analyzer of Cardiac Autonomic Neuropathy through Autonomic Function 5 tests (Ewing Test) and Orthostatic Intolerance test in HRV.

Explore Features

Composition for AFT-800

ANS Function 5 Tests (Ewing’s Test)

Heart Rate response to Valsalva Load
Heart Rate response to Standing Up (30:15 Test)
Heart Rate response to Deep Breathing
Blood Pressure response to Standing Up
Blood Pressure response to Sustained Handgrip

HRV Load Test

HRV Test at supine & upright position

HRV Load Test

HRV (Heart Rate Variability)

Heart Rate Variability is a periodic variation in the heart rate influenced by time flow. It is a remarkable tool to evaluate autonomic homeostasis. Healthier individuals show higher and more complex HRV, whereas stress or disease results in reduced HRV complexity.

HRV Load Test

The HRV Load Test assesses autonomic nerve function changes caused by posture variation (supine & upright), enabling early detection of autonomic neuropathy.

Clinical Application & Testing Items

Orthostatic Hypotension

Autonomic Neuropathy & Dysfunction

Diabetic Neuropathy

Syncope, POTS, Exercise Syncope

Endocrinology, Neurology, Cardiology

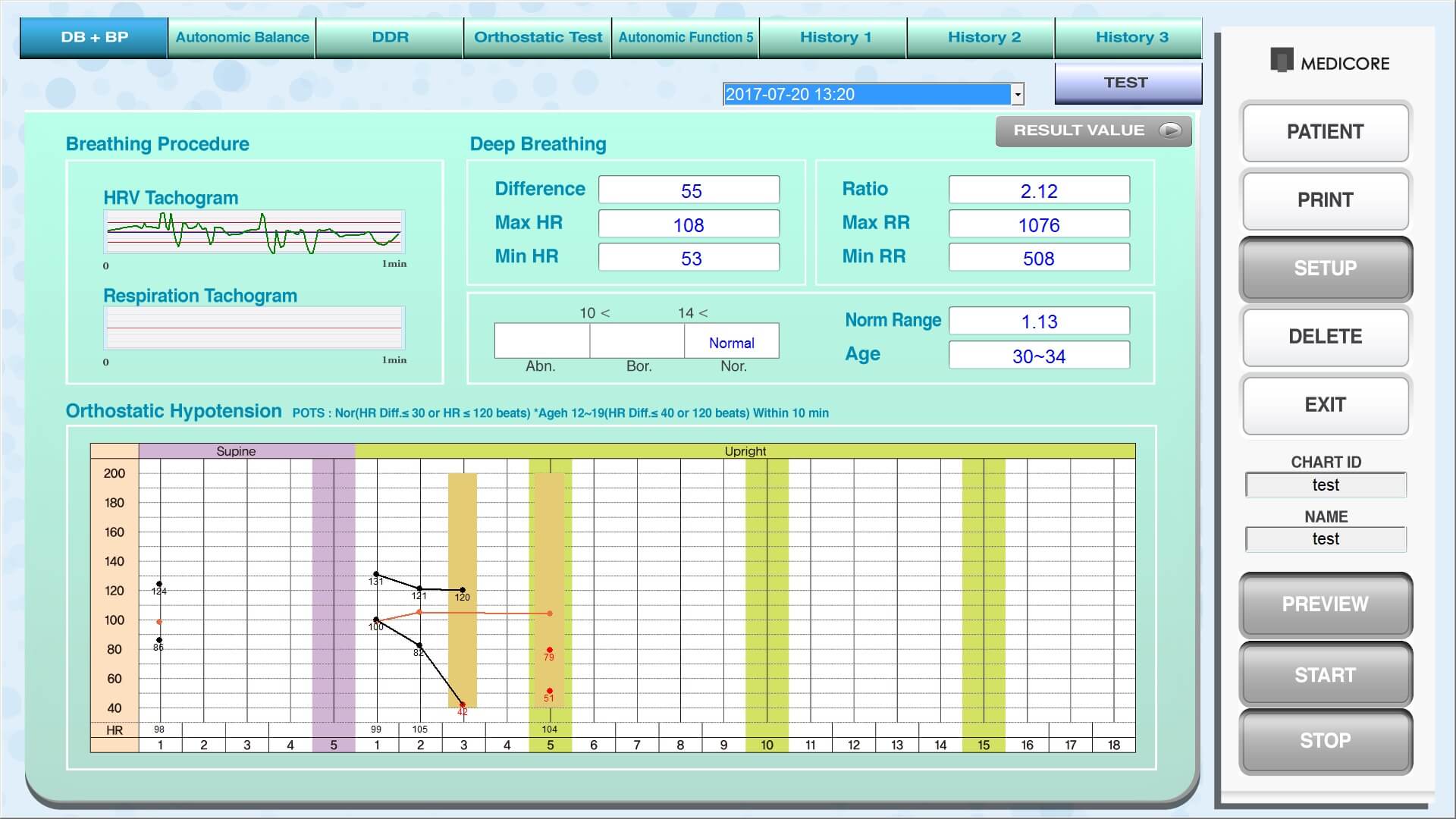

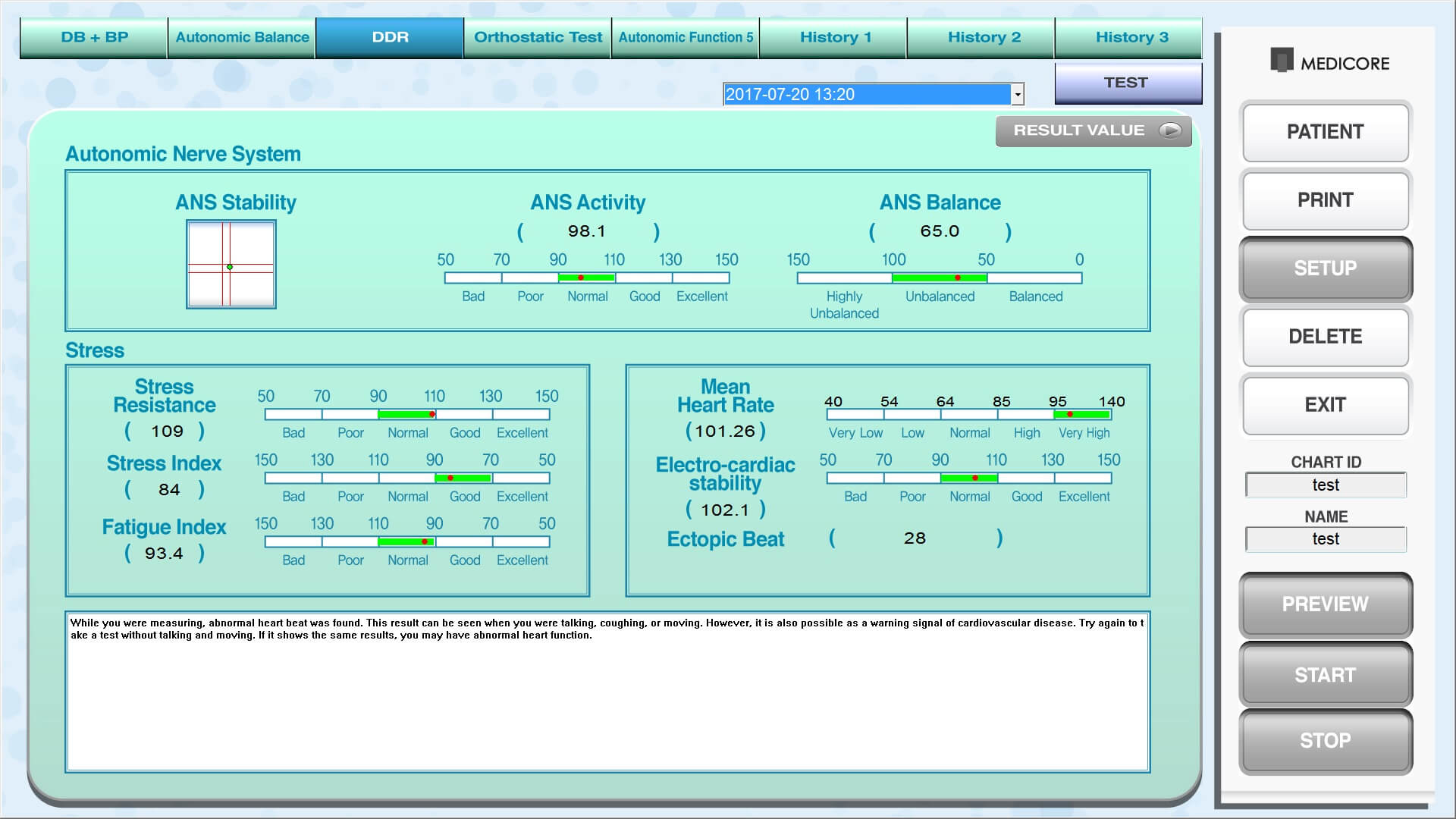

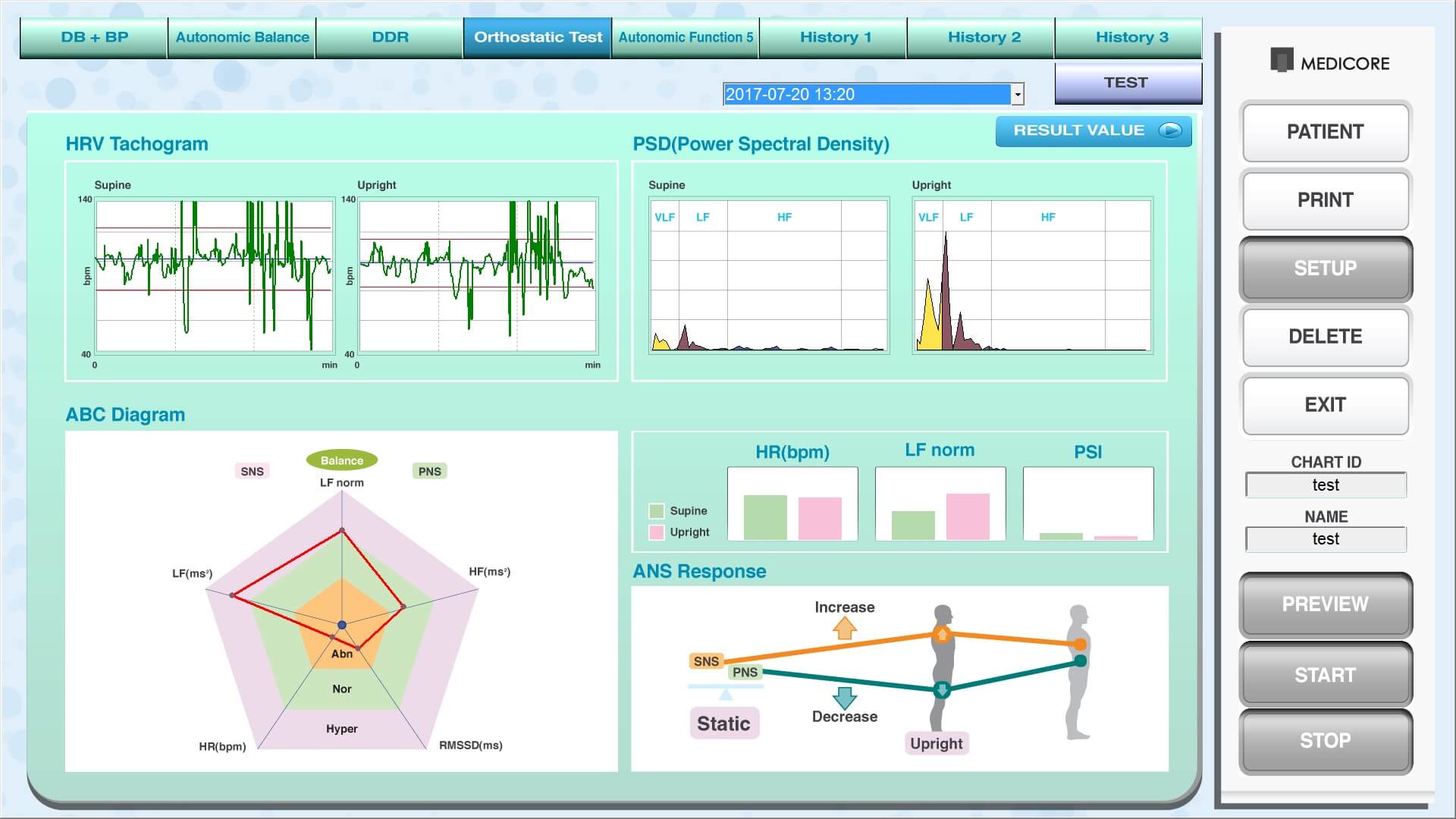

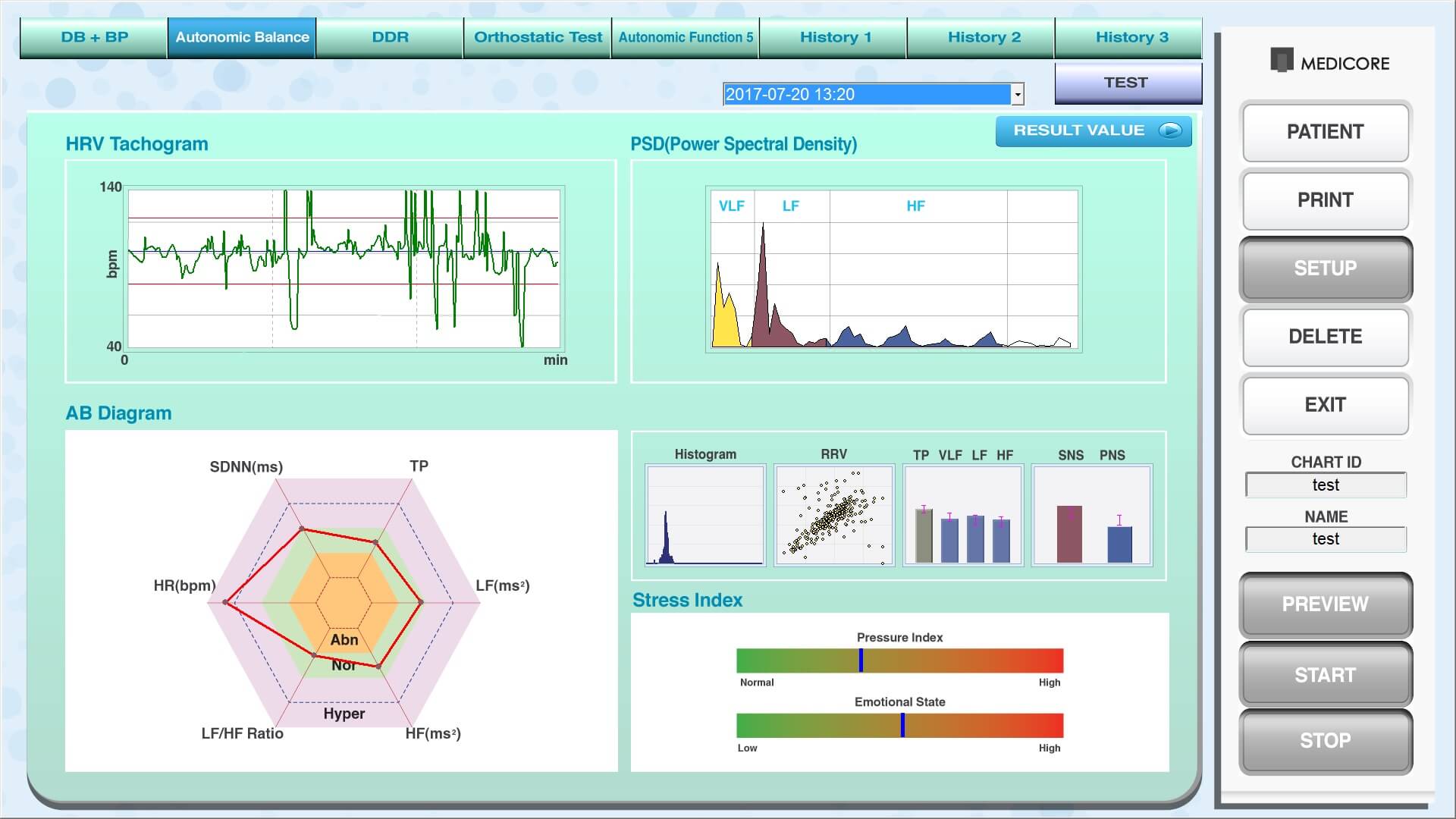

Screen Composition

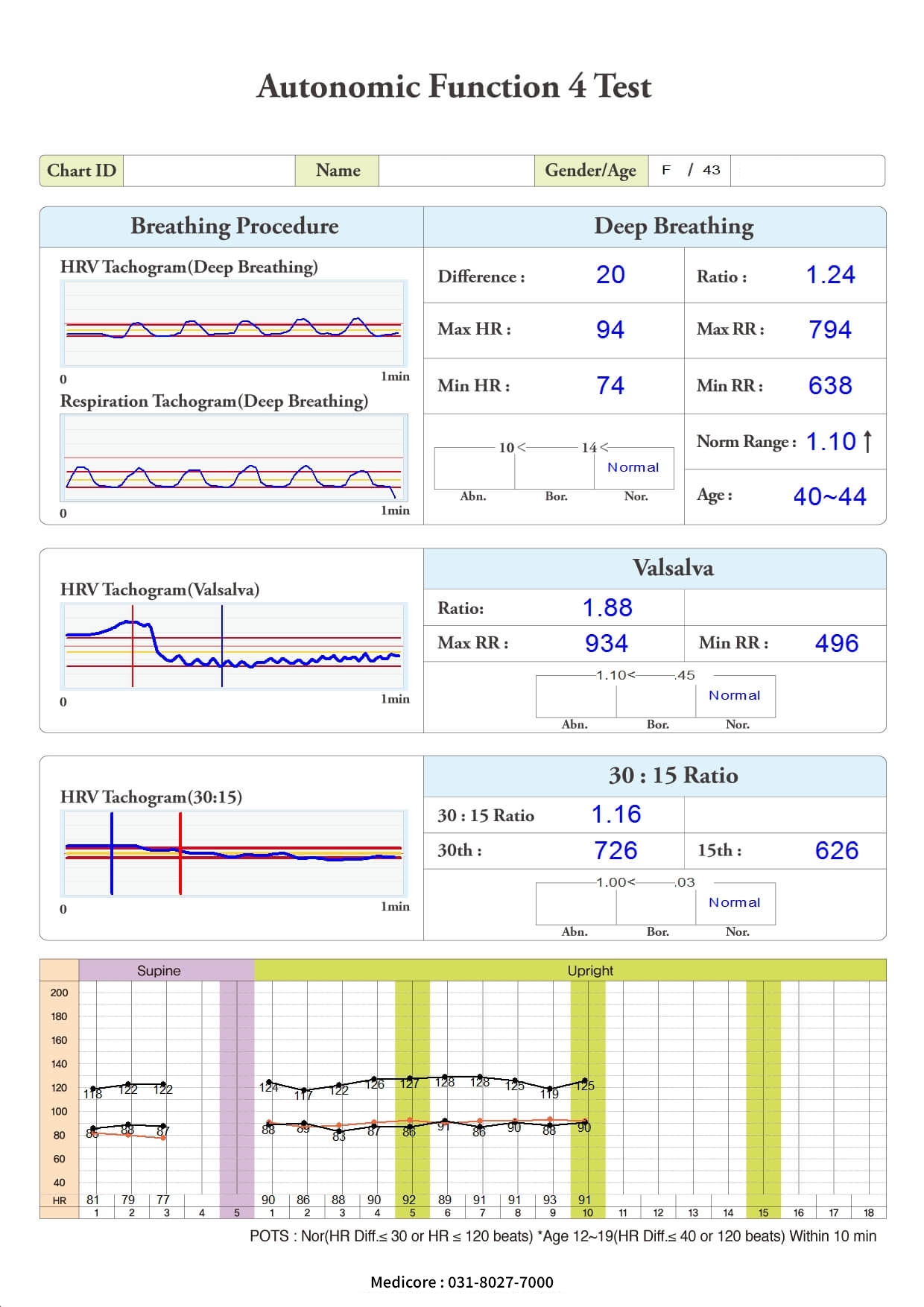

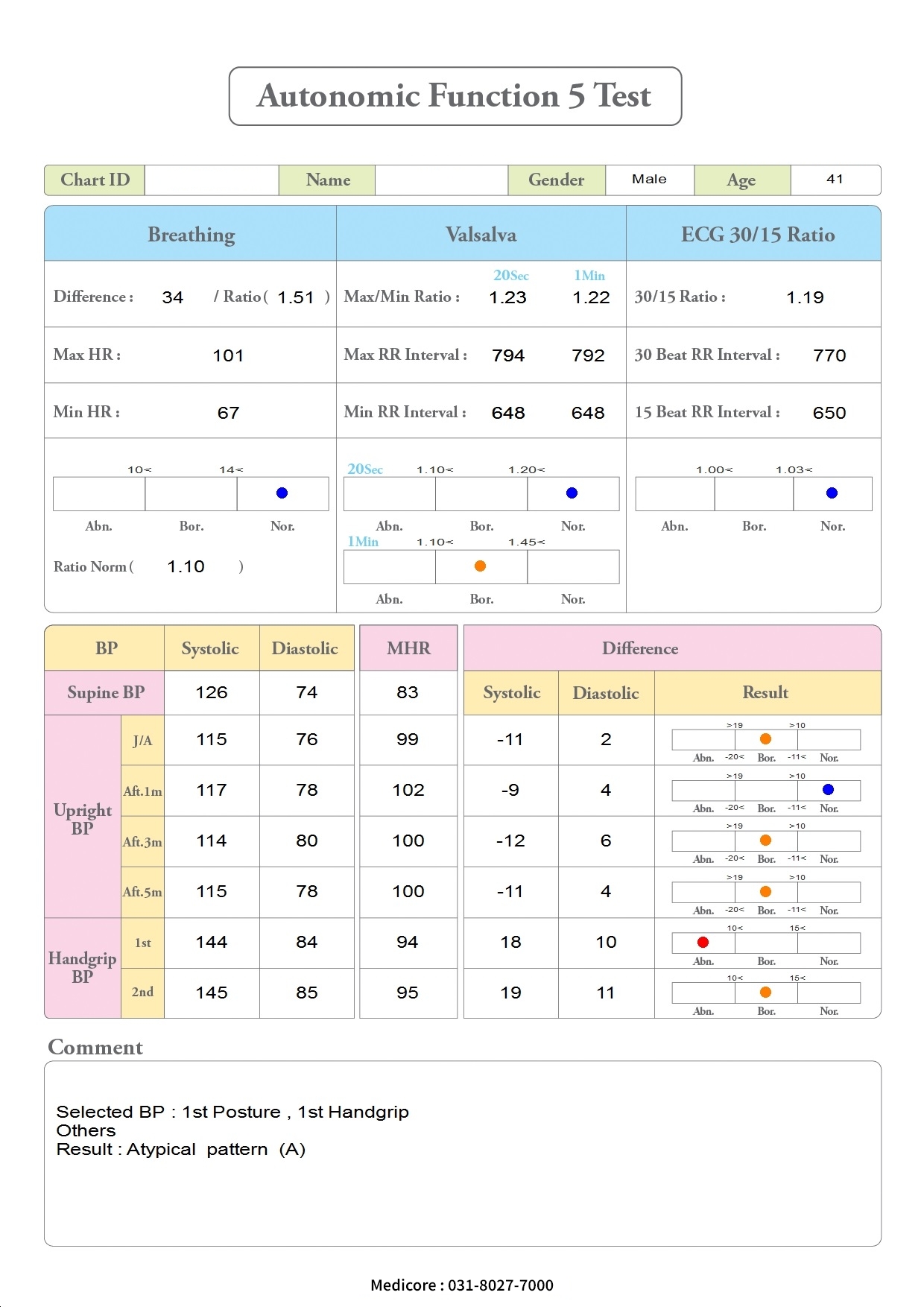

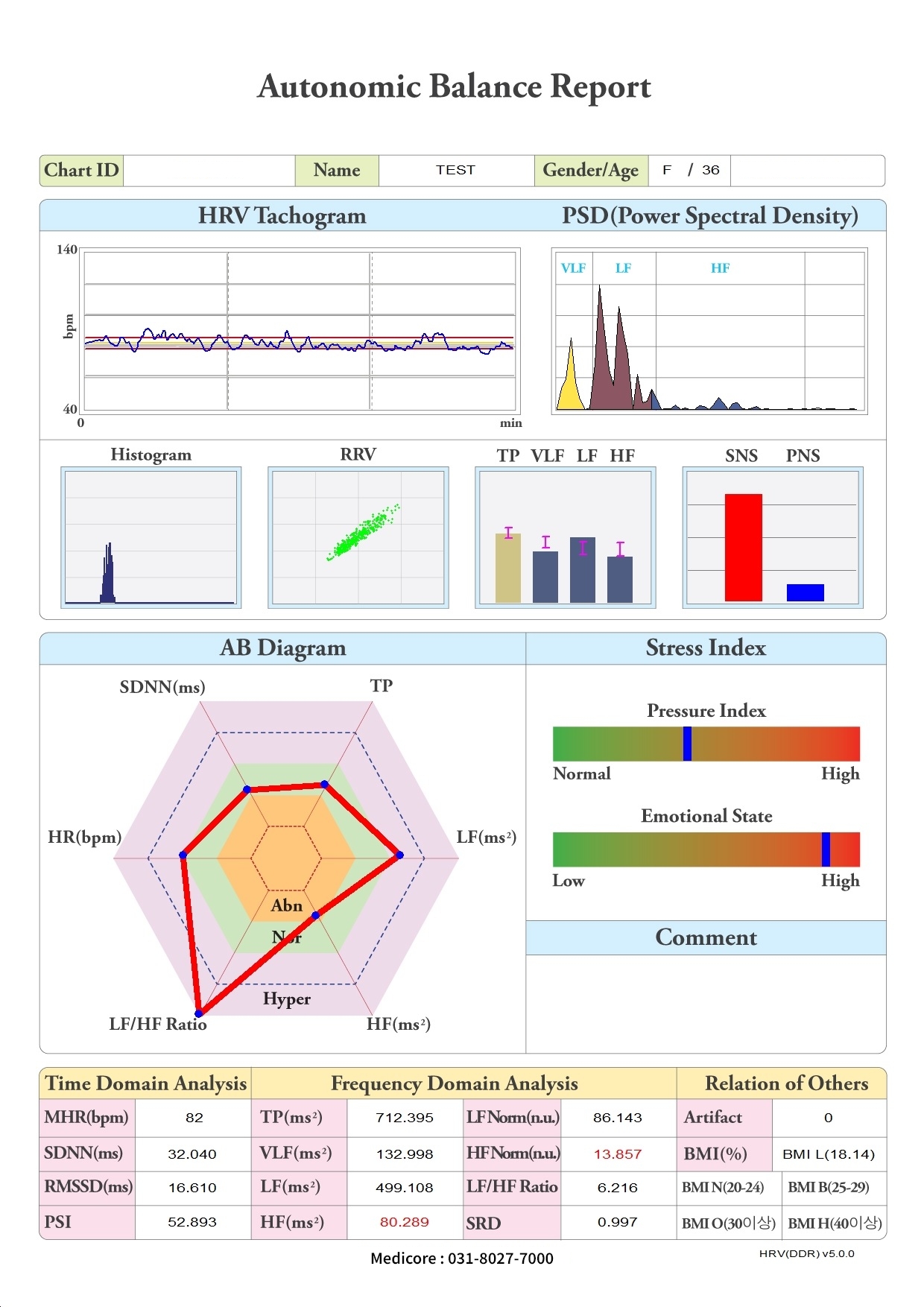

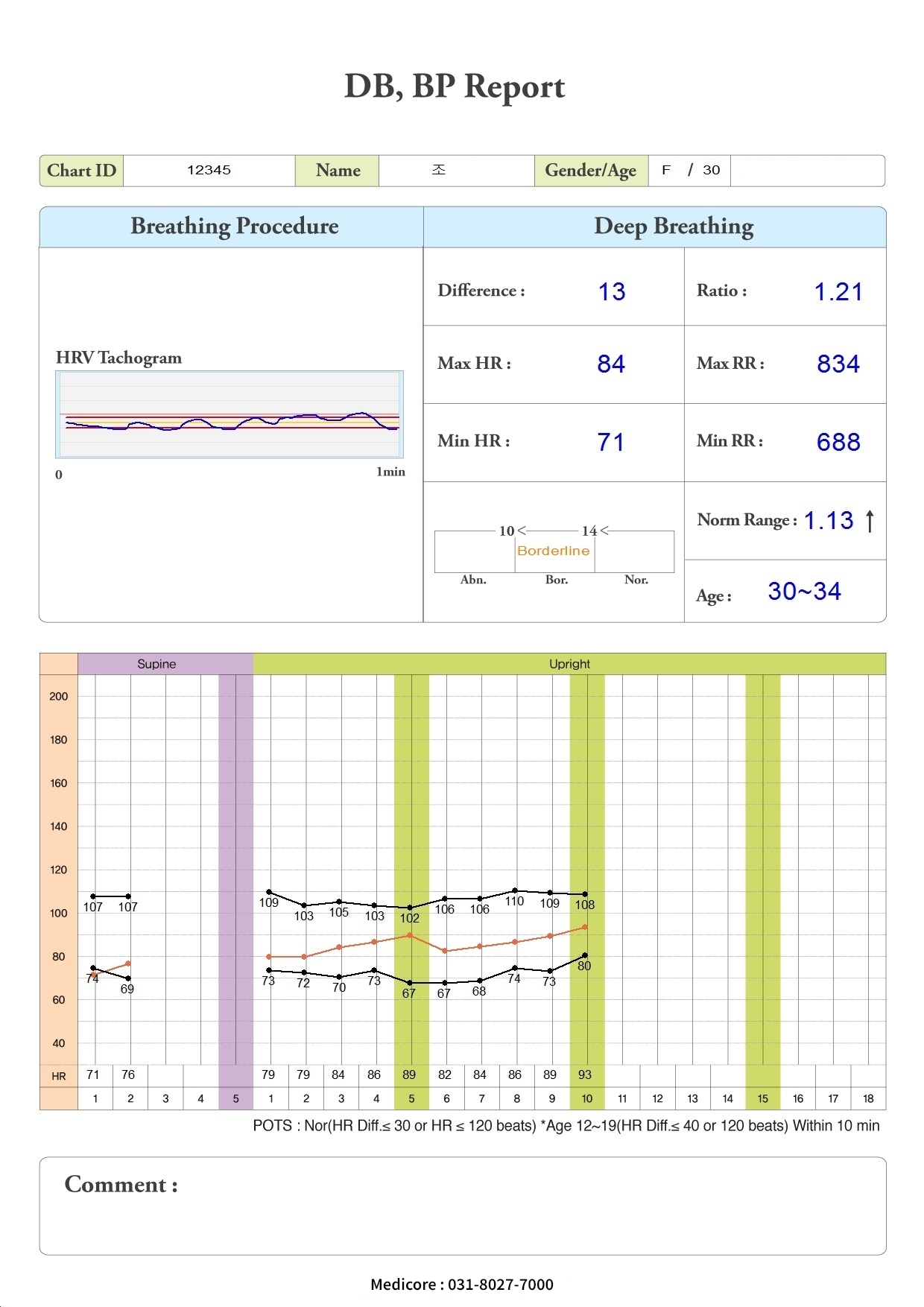

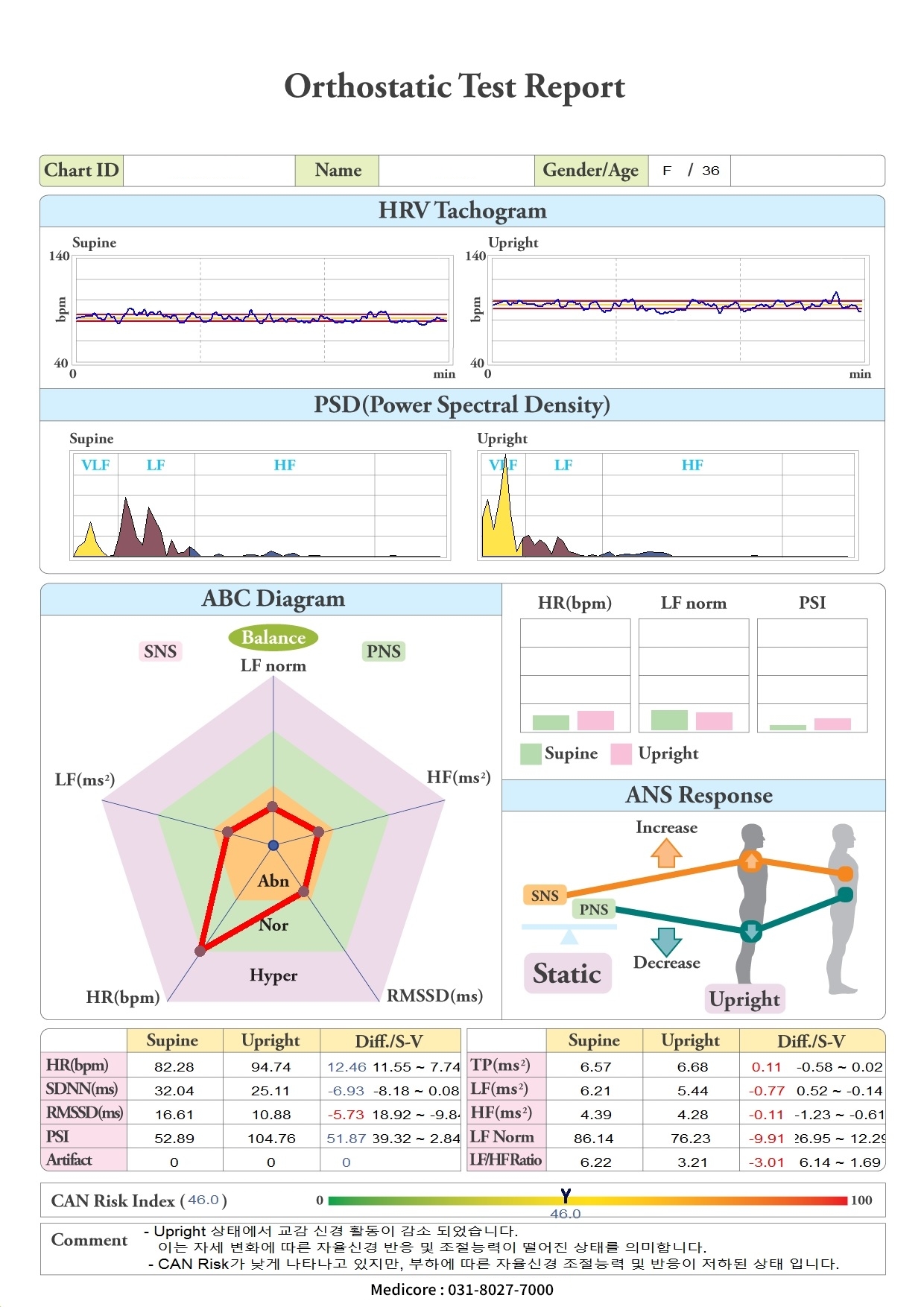

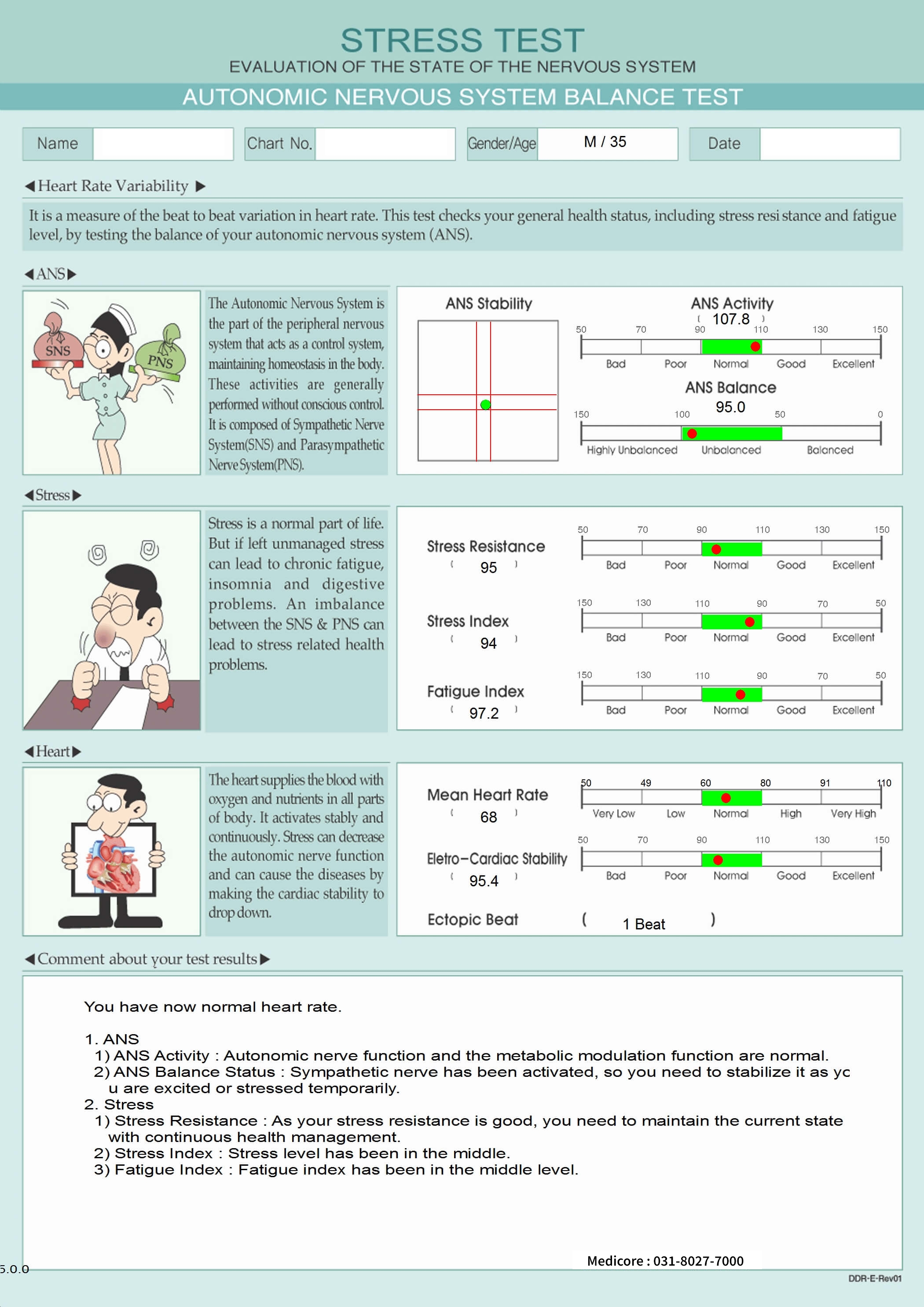

Analysis Report

Key Features

• Tilting table test & POTS

• Heart Rate response to Deep Breathing

• Blood Pressure response to Standing Up

• Heart Rate response to Valsalva Load

• Blood Pressure response to Sustained Handgrip

• Heart Rate Variability (HRV)

• 30:15 Ratio Test

Technical Specifications

Medical Device Class	Class II
Electrical Stability	Class I, BF Type
NIBP Range	Systolic: 30–270 mmHg \| Diastolic: 10–245 mmHg
Heart Rate Range	30–200 bpm
Power	220V AC, 60Hz, 100W
Size	550 × 700 × 1400 mm
Weight	Approx. 53 Kg
